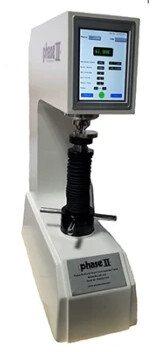

Digital TWIN Rockwell Hardness Tester Model 900-440
Store/Hardness Testers/Rockwell Hardness Testers
Product Details

Shipping charges will include Customs Brokerage, Duty, and Insurance

Features

  • Reads in all Rockwell Hardness Scales and Superficial Rockwell Hardness Scales. These include the popular HRA, HRBW, HRC, HRN and HRT Hardness scales.
  • Automatic conversions to all Rockwell/Superficial Rockwell Scales, as well as to Brinell (HB) and Vickers (HV).
  • Load Cell driven system provides precise control of test force application
  • Touch Screen selectable system
  • Upper/Lower Limit Settings

This digital Rockwell hardness tester with fully automated load/unload procedures affords highly sensitive and accurate readings. Micro computer controlled Touch Screen with USB output to flash drive. Utilizing the guidelines of ASTM E-18, the 900-440 digital Rockwell hardness tester offers programmable scale conversions, dwell times, statistical capabilities and test counter.

Capable of testing in all of the regular Rockwell and Superficial Rockwell hardness scales.

Direct Loading Method With Load-Cell Instead Of Dead Weight System. High Speed Test Cycle and Extremely Accurate Loading Control

  • Automatic conversions to Rockwell, Superficial Rockwell, Brinell (HB) and Vickers (HV) Hardness Scales
  • Touch Screen selectable system
  • Upper/Lower Limit Settings
  • Test resolution: 0.01HR Rockwell unit;
  • Operation temperature:50° – 95°F (10ᵒC～35ᵒC)
  • Ambient environment: clean, no vibration, no strong magnetic field, and no corrosive medium;
  • Power supply:single phase, AC, 110-220 with manual change, 50～60Hz, 4A;
Minor Load 3kgf / 10 Kgf
Major Load 60 Kgf, 100 Kgf, 150 KGF, 15KGF, 30KGF, 45KGF
Test Force Application Load Cell Closed Loop
Test Force Control Motorized
Results Display Hi Def LCD Digital Readout
Resolution 0.1HR
Vertical Capacity 8.0”
Throat Depth 7.8”
Height 22”
Width 8”
Depth 31”
Weight 175 lbs

Accessories: Included

  • C-scale Diamond Indenter
  • 1/16” Ball Indenter
  • 2- HRN test Blocks
  • 3- HRT Test Block
  • Test Table 5.87” (150mm)
  • Flat Anvil 2.5” (63mm)
  • Std. V- Anvil
  • Dust Cover
  • Accessory Case

Options:
