Latest portable hardness tester technology. Utilizes both ultrasonic and dynamic type portable hardness testers in one unit. Non-destructive test can handle small or thin work down to 2mm of thickness, as well as large parts.

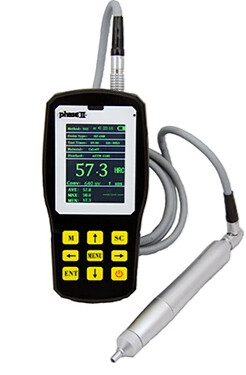

Phase II PHT-6002 Offers

Extremely versatile, with many options and configurations to handle all types of hardness tester applications.

Features

• For surfaces with Ra below 200uin
• Non-Destructive hand held portable hardness tester
• Combines UCI and Leeb portable hardness testing in one state of the art device
• Test steel with min thickness of .08" and unlimited max thickness (Other materials may have larger minimum thickness levels, depending on hardness)
• Blazing fast test results
• Rockwell, Brinell and Vickers hardness test conversions shown on display
• Large Memory w/USB Output
• Choice of manual UCI probes; 1kg, 2kg, 5kg & 10kg
• Optional Motorized Probes: .30kg, .80kg, & 1kgf
• Available Impact Devices(Leeb) D, DC, D+15, G & DL

Applications

• Electrical/Mechanical Inspection
• Test & Measurement
• Manufacturing
