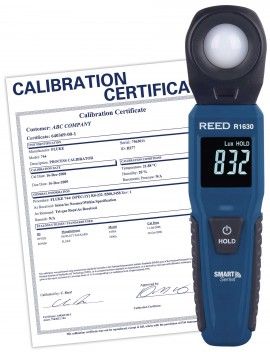

REED R1630-NIST Light Meter, Bluetooth Smart Series, includes ISO Certificate
Product Details
Real-time data logging Light Meter with Bluetooth 5.0 connectivity wirelessly connects to the REED Smart Series App. This product includes an ISO Certificate with full Data and Uncertainties.
REED R1630-NIST Offers
The R1630 is a compact light meter that can be used either stand-alone or with the REED Smart Series App (available for download on Android and iOS). When connected to the App, the R1630 can be set up to data log measurements over a given period.
This product includes an ISO Certificate with full Data and Uncertainties.
Features
- Measures up to 100,000Lux (9290Fc)
- Easy to operate, designed for one-hand operation
- Integrated display provides flexibility for use without a mobile device
- Magnetic Backing allows the instrument to be mounted to metallic surfaces
- Data Hold function
- Low battery indicator and auto shut off
- Tripod mount for long-term monitoring
When used with the REED Smart Series App:
- Real-time data logger
- User-selectable sampling rate from 1 to 120 seconds
- Bluetooth 5.0 provides connectivity to instruments up to 246' (75m) away
- Connect, measure and data log up to 6 instruments, simultaneously
- Easy setup with automatic app integration for compatible REED Smart Series instruments
- Export data via Excel or PDF and create custom reports that can be emailed from a mobile device
REED R1630-NIST Specifications
| Measuring Range | Lux: 0 to 100,000 Fc: 0 to 9290 |
| Accuracy | ≤10,000Lux (929Fc): ±(3.5% rdg.+ 10dgt) >10,000Lux (929Fc): ±(5% rdg.+ 10dgt) |
| Resolution | Lux: 0.1, 1, 10, 100 Fc: 0.1, 1, 10 |
| Display | Enhanced Black Twisted Nematic (EBTN) LCD |
| Display Size | 1.3" (34mm) |
| Backlit Display | Yes |
| Data Hold | Yes |
| Data Logging Capabilities | Yes (with Smart Series App) |
| Real-Time Clock and Date Stamp | Yes (with Smart Series App) |
| Customizable Sampling Rate | Yes |
| Overrange Indicator | Yes |
| Auto Shut-Off | Yes (adjustable) |
| Tripod Mountable | Yes |
| Magnetic Backing | Yes |
| Low Battery Indicator | Yes |
| Power Supply | 4 x AAA Batteries |
| Battery Life | Approx. 50 hours (sampling time dependent) |
| Connectivity | Bluetooth® 5.0 |
| Bluetooth® Range | Up to 246' (75m) |
| Max # of Connected Devices | 6 |
| Software | REED Smart Series App (iOS and Android) |
| App Supported Languages | English, French |
| Product Certifications | CE, UKCA, FCC, IC ID |
| Maximum Operating Altitude | 6561' (2000m) |
| Operating Temperature | -4 to 140°F (-20 to 60°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Operating Humidity Range | 10 to 90% |
| Storage Humidity Range | 10 to 90% |
| Dimensions | 6.9 x 1.5 x 1" (175 x 38 x 25mm) |
| Weight | 3.4oz (95g) |
