CONTACT US FOR QUOTE!

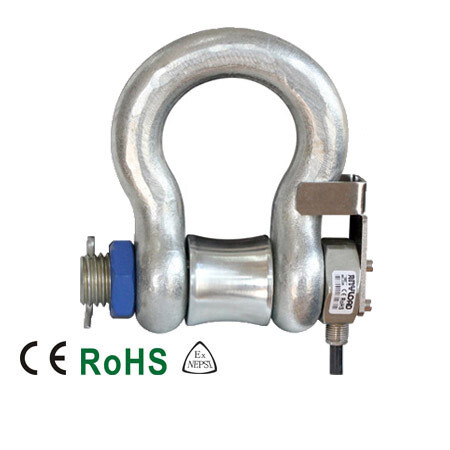

Committed to load cell innovation, Anyload's shackle load cells can be integrated directly and easily into existing workflows with little disruption, providing a time-saving and simple weighing solution. The stainless steel IP67 waterproof construction provides heavy-duty reliability for rugged and harsh environments.

• Material: Stainless steel ( 2Cr13 or 17-4PH stainless steel )
• Capacities: 5t, 10t, 15t, 20t, 30t, 50t, 100t
• CE, RoHS, and Ex certified load cells
• Load pin and shackle integration
• Bobbin design provides high accuracy and repeatability
• High tensile shackle meets ISO2415-2004 requirements
• Bridge Impedance: 350 Ohms
• Full Scale Output: 2.5mV/V ± 0.25%
• Non-linearity: ≤ 1% of full scale
• Repeatability: ≤ 0.5% of full scale
• Hysteresis Error: ≤ 1% of full scale
• Test Load: 2 times of the rated capacity
• Total Error: 1% of full scale
• Seal Type/IP Rating: Environmentally Sealed/IP67
