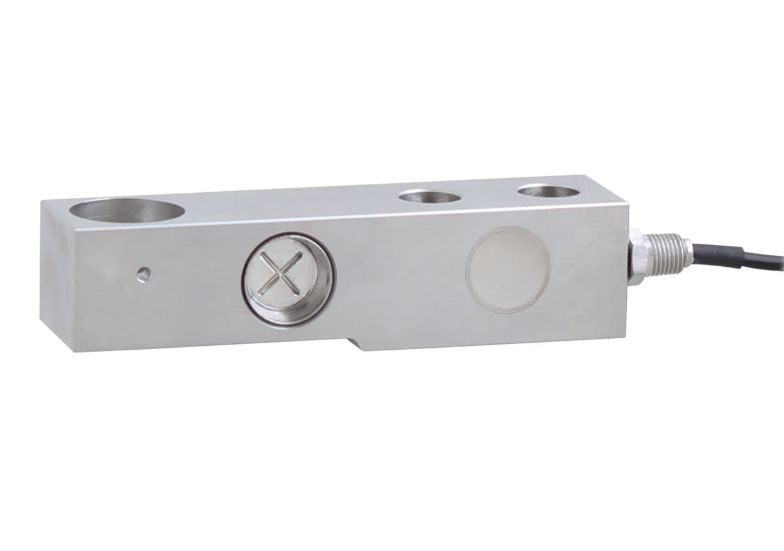

563YSMT Single Ended Beam Load Cell
Product Details
563YSMT Single Ended Beam Load Cell
The compact, low-profile design of this cost-effective single-ended beam load cell makes it suitable for lower and medium capacity applications, such as platform scales, hopper scales, etc. The IP68-class water-resistant stainless steel welded sealed construction ensures excellent performance under rugged conditions. The 563YSMT is interchangeable with Mettler Toledo 0744*, Mettler Toledo 0745, Rice Lake RL30745, and more (see: INTERCHANGEABLE tab).
- Material: Stainless steel
- Rated Capacities: 250lb, 500lb, 1.25Klb, 2.5Klb, 4Klb, 5Klb, 10Klb
- Full Scale Output: 2mV/V ± 0.25%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP68
- 250lb-2.5Klb: up to NTEP 1:5 000 Class III, Single Cell; NTEP 1:9 500 Class III, Multiple
4Klb-10Klb: up to NTEP 1:6 000 Class III, Single Cell; NTEP 1:10 000 Class III, Multiple Cell - 1.25Klb-5Klb: up to OIML MAA C5, Y=26 000;
10Klb: up to OIML MAA C6, Y=8 500 - CE, RoHS and Ex(NEPSI) certified
- ATEX, FM, IECEx available upon request
- Pin to be ordered separately
